What products are suitable for lifepo4 bms 24v and 48V respectively?
30,Jun 2025
A Battery Management System (BMS) serves as the guardian and brain of modern battery packs. It monitors, protects, and optimizes battery performance through sophisticated electronics and software. Whether in electric vehicles, renewable energy storage, or your smartphone, a BMS ensures safe operation, extends battery life, and maximizes available energy. This comprehensive guide explores how these critical systems work, why they're essential, and how they're evolving to meet future energy needs.
A Battery Management System (BMS) is an electronic system that manages a rechargeable battery pack by monitoring and controlling its charging and discharging processes. Think of a BMS as a vigilant guardian that constantly watches over each battery cell, ensuring they operate within safe parameters while maximizing performance and lifespan.
At its core, a BMS is dedicated to the oversight of a battery pack—an assembly of battery cells organized in a specific configuration to deliver the required voltage and current for particular applications. The BMS monitors critical parameters like voltage, current, and temperature while providing protection mechanisms to prevent potentially dangerous conditions.
Unlike simple batteries of the past, modern battery packs (especially lithium-ion) require sophisticated management systems because they can be unforgiving if operated outside their safe operating area (SOA). A well-designed BMS prevents damage to the battery while optimizing its performance across various operating conditions.
A comprehensive Battery Management System performs several critical functions that ensure safe operation and optimal performance of battery packs. Let's explore the five most important functions
The primary function of a BMS is to monitor individual cell voltages, current flow, and temperature. This continuous surveillance ensures that each cell operates within its safe operating area. If any parameter exceeds predefined limits, the BMS can trigger protective measures—from reducing current to completely disconnecting the battery—to prevent damage or hazardous conditions.BMS
For example, if a cell's voltage rises too high during charging (overcharge) or falls too low during discharging (over-discharge), the BMS will intervene. Similarly, if excessive current is detected or temperatures rise beyond safe limits, the BMS activates protection mechanisms to safeguard the battery pack.
The BMS continuously calculates the battery's state-of-charge—essentially the battery's "fuel gauge." This function helps users understand how much energy remains in the battery, similar to a fuel gauge in a conventional vehicle. Accurate SOC estimation is challenging but crucial for applications like electric vehicles where range anxiety is a concern.
Advanced BMS systems use sophisticated algorithms that consider factors like voltage, current, temperature, and battery aging to provide increasingly accurate SOC estimates. This information is vital for users to make informed decisions about when to recharge.
Get our comprehensive guide to understanding and implementing effective battery management systems for your applications.
Download Free BMS GuideTemperature significantly affects battery performance, safety, and lifespan. A BMS monitors temperature across the battery pack and can activate cooling or heating systems to maintain optimal operating temperatures. This is particularly important in extreme environments or during fast charging/discharging when heat generation increases.
In electric vehicles, for example, the BMS might activate liquid cooling systems during fast charging or heating elements in cold weather to ensure the battery operates within its optimal temperature range, typically between 20-40°C (68-104°F).
Individual cells in a battery pack inevitably develop slight differences in capacity and charge levels over time. These imbalances can reduce the overall usable capacity of the pack, as the weakest cell effectively limits the entire battery. The BMS performs cell balancing to ensure all cells maintain similar charge levels.
Cell balancing can be passive (dissipating excess energy from higher-charged cells as heat) or active (transferring energy from higher-charged cells to lower-charged ones). This function is crucial for maximizing available capacity and extending battery life, especially in large battery packs with many cells in series.
Modern BMS systems collect and store data about battery performance, usage patterns, and health indicators. This information can be communicated to other systems (like a vehicle's main computer) or to users through displays and apps. The BMS may also provide diagnostic information and alert users to potential issues before they become serious problems.
In connected systems, this data can be transmitted to cloud platforms for advanced analytics, predictive maintenance, and continuous improvement of battery management algorithms. This communication capability is becoming increasingly important in the age of IoT and smart energy systems.
A Battery Management System consists of several hardware and software components working together to monitor and control the battery pack. Understanding these components helps clarify how a BMS accomplishes its various functions.
The BMS relies on various sensors to gather data about the battery's condition:
These sensors must be precise and reliable, as the BMS makes critical decisions based on their readings. In large battery packs, dozens or even hundreds of sensors may be deployed to provide comprehensive monitoring.
The "brain" of the BMS is typically a microcontroller or microprocessor that processes sensor data, runs algorithms, and makes decisions about battery operation. This control unit executes the software that implements battery management strategies and protection protocols.
The microcontroller must be robust and often includes redundant systems for safety-critical applications like electric vehicles. It typically runs specialized firmware optimized for battery management functions, with algorithms for SOC estimation, cell balancing, and thermal management.
Protection circuits are the safety mechanisms that can disconnect or limit current flow to prevent damage or hazardous conditions. These include:
These protection mechanisms often include both electronic controls and physical components like fuses and contactors that can physically disconnect the battery in emergency situations.
Get our BMS implementation checklist to ensure your battery system design includes all critical safety and performance features.
Download BMS ChecklistCell balancing circuits enable the BMS to equalize the charge levels across all cells in the battery pack. These can be:
The choice between passive and active balancing depends on the application requirements, with active balancing being more efficient but also more complex and expensive.
Modern BMS systems include communication interfaces that allow them to exchange data with other systems and user interfaces. Common communication protocols include:
These communication capabilities enable integration with broader systems, remote monitoring, diagnostics, and over-the-air updates to BMS firmware and algorithms.
Battery Management Systems play a crucial role in modern battery applications, particularly for lithium-ion batteries. Their importance extends beyond basic functionality to safety, performance optimization, and economic considerations.
The primary importance of a BMS lies in safety. Lithium-ion batteries store significant energy in a compact space and can be dangerous if mishandled. Without proper management:
The BMS acts as a vigilant guardian, constantly monitoring for potentially dangerous conditions and taking preventive action before safety is compromised. This is particularly important in applications like electric vehicles or grid storage where battery failures could have serious consequences.
Beyond safety, a BMS significantly improves battery performance. By maintaining optimal operating conditions and balancing cells, the BMS ensures that the maximum capacity is available and that performance remains consistent throughout the battery's life.
For example, in electric vehicles, an effective BMS can increase range by 10-15% compared to unmanaged systems by ensuring all cells contribute equally and operate at optimal temperatures. The BMS also provides accurate range estimates, reducing range anxiety for drivers.
Batteries represent a significant investment in many applications. A good BMS extends battery life, protecting this investment and reducing total cost of ownership. For instance:
By extending battery life through proper management, a BMS delivers substantial economic benefits over the life of the system. This makes the additional cost of a sophisticated BMS easily justifiable in most applications.
Battery Management Systems are found in a wide range of applications, from small consumer devices to massive energy storage installations. Let's explore some key applications and how BMS technology is specifically adapted for each.

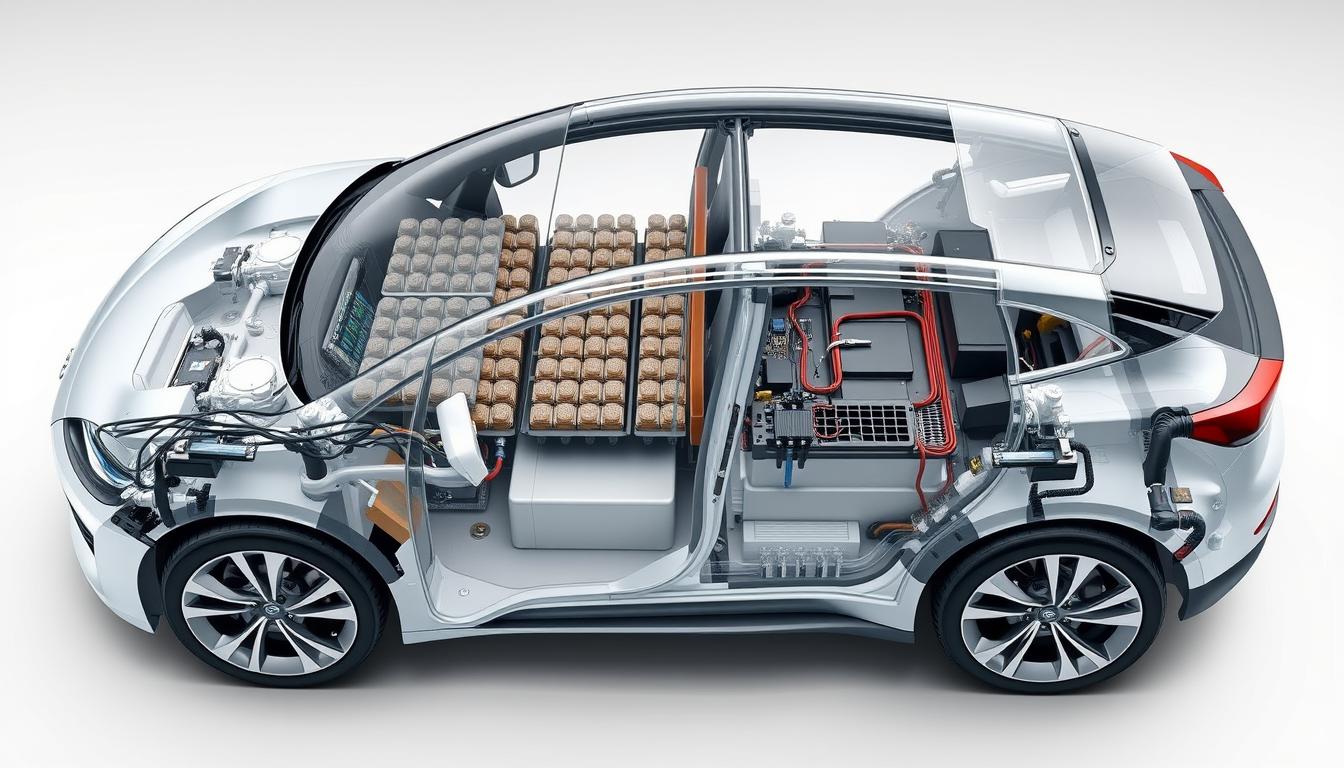

Electric vehicles represent one of the most demanding applications for Battery Management Systems. In an EV, the BMS must manage large battery packs (often 400-800V) while ensuring safety, performance, and longevity under varying driving conditions.
The BMS in an electric vehicle performs several specialized functions:
Modern EVs like Tesla vehicles use sophisticated BMS architectures with distributed intelligence to manage thousands of individual cells while providing real-time data to drivers and maintenance systems.
Grid-scale and home battery storage systems for renewable energy rely heavily on advanced BMS technology. These systems must manage energy flow between solar panels, the battery, and the grid while maximizing battery life and safety.
In these applications, the BMS typically features:
Systems like the Tesla Powerwall or large-scale grid storage installations use sophisticated BMS technology to ensure reliable operation and maximum economic return from the battery investment.
Subscribe to our newsletter for the latest developments in battery management systems and energy storage technology.
Subscribe NowEven small devices like smartphones, laptops, and wearables incorporate Battery Management Systems, albeit in a highly miniaturized form. These compact BMS solutions focus on maximizing battery life in a limited space while ensuring user safety.
In consumer electronics, the BMS typically handles:
Apple, Samsung, and other major electronics manufacturers invest heavily in BMS technology to improve battery performance, which remains a key differentiator in consumer devices.
Battery-powered industrial equipment and medical devices have unique BMS requirements focused on reliability and safety. These applications often cannot tolerate battery failures and may operate in challenging environments.
In these critical applications, BMS systems typically feature:
For example, medical devices like portable ventilators or implantable devices use specialized BMS designs that prioritize reliability and safety above all other considerations.
Battery Management System technology continues to evolve rapidly, driven by advances in battery chemistry, computing power, and connectivity. Several emerging trends are shaping the future of BMS design and capabilities.
Artificial intelligence and machine learning are revolutionizing Battery Management Systems by enabling more accurate predictions and adaptive management strategies. These advanced algorithms can:
Companies like Tesla are already implementing machine learning in their BMS to improve range predictions and battery longevity, with each vehicle contributing data to improve the entire fleet.
Traditional BMS designs require extensive wiring harnesses to connect to each cell, adding weight, complexity, and potential failure points. Wireless BMS technology is emerging as a solution, using wireless communication between battery modules and the central controller.
Benefits of wireless BMS include:
General Motors has announced plans to implement wireless BMS technology in their Ultium battery platform, potentially saving up to 90% of the wiring in traditional systems.
As electric vehicles become more common, there's growing interest in repurposing their batteries for second-life applications like stationary storage after they no longer meet the demands of automotive use. Advanced BMS technology is key to enabling this transition.
Next-generation BMS for second-life applications will feature:
Companies like Nissan and BMW are already implementing programs to repurpose EV batteries for grid storage, extending the useful life of these batteries by 7-10 years beyond their automotive life.
Future BMS technology will increasingly integrate with broader energy management systems, smart grids, and renewable energy sources. This integration enables batteries to participate more effectively in the energy ecosystem.
Advanced integration features will include:
These capabilities will transform batteries from passive energy storage devices to active participants in the energy ecosystem, creating new value streams and improving overall energy efficiency.
A BMS prevents battery fires through multiple layers of protection. It continuously monitors cell temperatures and voltages to detect abnormal conditions before they become dangerous. If the BMS detects excessive heat, voltage irregularities, or current spikes, it can take immediate action by:
In lithium-ion batteries, thermal runaway (when a cell overheats and triggers a chain reaction) is the primary fire risk. The BMS prevents this by ensuring no cell operates outside its safe temperature range and by detecting early warning signs of cell failure.
Yes, a BMS significantly improves battery lifespan through several mechanisms:
Studies show that properly managed lithium-ion batteries can last 2-3 times longer than unmanaged ones. In electric vehicles, a good BMS can help maintain 80% of original capacity after 1,000+ charge cycles, compared to perhaps 300-500 cycles without proper management.
If a BMS fails, the consequences depend on the failure mode and the application. Possible outcomes include:
Critical applications like electric vehicles typically include redundant systems and fail-safe mechanisms to mitigate the risks of BMS failure. Regular diagnostics and maintenance can help identify potential BMS issues before they lead to complete failure.
Selecting the appropriate BMS depends on several factors:
For complex applications, consulting with a battery system engineer is recommended to ensure all requirements are properly addressed.
Retrofitting a BMS to an existing battery pack is possible but challenging. Considerations include:
For simple applications like DIY energy storage, retrofit BMS solutions are available. For commercial or safety-critical applications, retrofitting should be approached with caution and preferably with professional engineering support.
Battery Management Systems represent the critical intelligence that enables modern battery technology to function safely and efficiently. As we've explored throughout this article, a BMS serves as both guardian and optimizer—protecting batteries from damage while maximizing their performance and lifespan.
From electric vehicles revolutionizing transportation to renewable energy storage enabling a cleaner grid, advanced battery systems are at the heart of our energy transition. The BMS makes these applications possible by addressing the fundamental challenges of battery management: safety, performance optimization, and longevity.
As battery technology continues to evolve with new chemistries and configurations, BMS technology will evolve alongside it. The integration of artificial intelligence, wireless connectivity, and broader energy ecosystem awareness represents the next frontier in battery management, promising even greater capabilities and efficiencies.
Whether you're designing a battery-powered product, managing an energy storage system, or simply using battery-powered devices, understanding the critical role of the Battery Management System helps appreciate the sophisticated technology working behind the scenes to deliver safe, reliable power.
